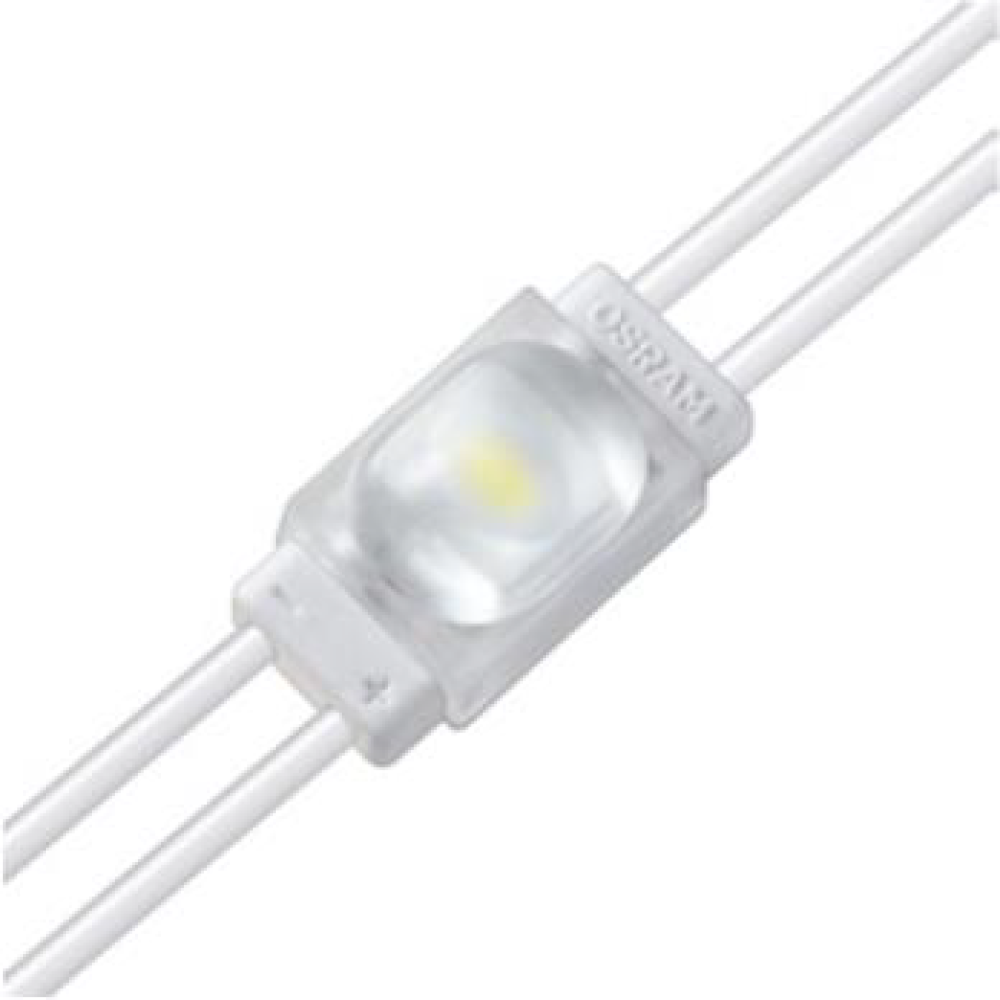

BACKLED MINI S CP, BA-MINI-S-CP 810 G4 38W 12V

EAN: 4062172145909
176,51 € (+ 20% VAT)

You need to register / log in to buy
Sales unit
  • LED chain comprising 100 LED modules connected by flexible cables
Benefits
  • Uniform illumination in narrow channels thanks to Oval Lens Technology
  • PCB and LEDs are protected inside a complete overmolded IP66 housing
  • CRI >80 and 3SDCM
  • Large CCT choice
  • Very long life time and 5 years guarantee
Applications
  • Backlighting of full acrylic letters
  • Backlighting of thin and flat light boxes
  • Permanent outdoor use in enclosed light boxes or channel letters
Family data sheet View downloads

Products

Product Color rendering index Ra Luminous flux Color temperature Data sheet
BackLED Mini S CP, BA-Mini-S-CP 830 G4 38W 12V 80 36 lm 3000 K
BackLED Mini S CP, BA-Mini-S-CP 840 G4 38W 12V 80 39 lm 4000 K
BackLED Mini S CP, BA-Mini-S-CP 865 G4 38W 12V 80 39 lm 6500 K
BackLED Mini S CP, BA-Mini-S-CP 871 G4 38W 12V 80 39 lm 7100 K

Downloads

Data sheets, brochures and technical information
