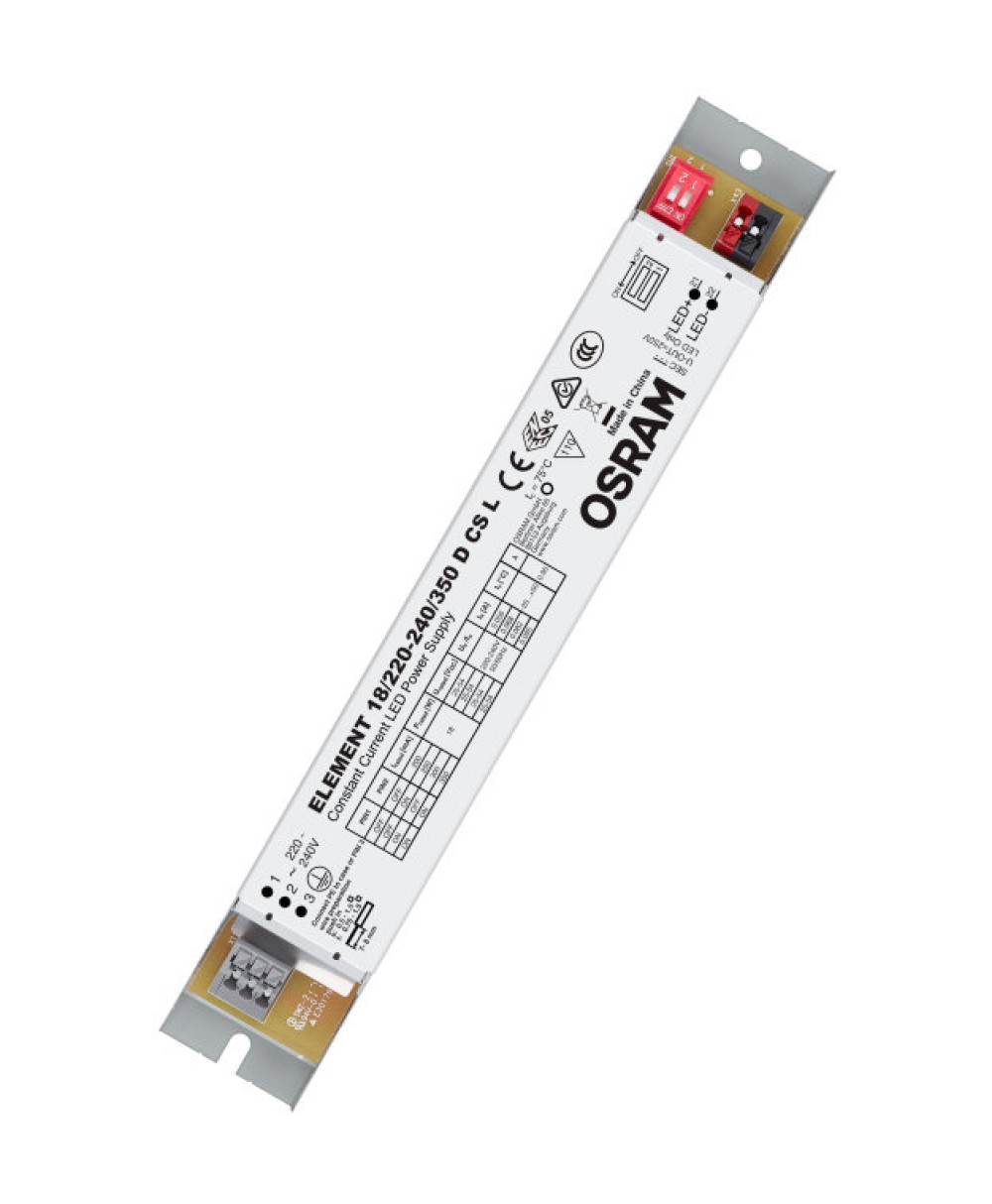

ELEMENT NON SELV
EAN: ELEMENT NON SELV
Sales unit
Family data sheet
View downloads
- 1 pcs
- Line frequency: 50 Hz | 60 Hz
- Supply voltage: 220…240 V
- Lifetime: up to 50,000 h (temperature at Tc max. = -10 °C, max 10% failure rate)
- Non-isolated drivers
- Flexible current setting (DIPswitch – 4 currents)
- Small housing for flexible luminaire designs
- High efficiency (up to 94%)
- Enhanced safety due to overload, overtemperature, short-circuit protection
- Linear lighting for office, school and public areas
- Suitable for luminaires of protection class I
Products
| Product | Nominal output current | Nominal output voltage | Data sheet |
ELEMENT 60/220-240/350 D CS L
|
200/250/300/350 mA | 90…175 V | |
ELEMENT 18/220-240/350 D CS L
|
200/250/300/350 mA | 25…54 V | |
|
ELEMENT 40/220-240/350 D CS L
|
200/250/300/350 mA | 55…120 V |
