CV PROTECTED POWER SUPPLIES WITH DALI
EAN: CV PROTECTED POWER SUPPLIES WITH DALI
Product features
Family data sheet
View downloads
- 1 up to 4 DALI addressable channels
- Lamp Failure detection
- Smart Power Supply
- SELV, Uout: 24 V
- Wide ta range -30…+55°C
- Driver with output power range of up to 210 W
- Overload/Over temperature/Short circuit protection
- tc max = 85 °C
- AstroDIM function
- Dimmable via DALI interface
- Very low dimming: 0,1%
- High surge protection: up to 4 kV (L-N), 8kV (L/N-PE)
- Mains voltage: 220–240 Vac / 176–276 Vdc
- 50’000 h lifetime at tc
- High IP protection (IP67)
- Output wire length up to 50 m
- 5 years guarantee* (*10% cumulated failure)
- Long lasting and high reliability
- From 1 to 4 channels to arbitrary distribute the power
- Suitable for installation under Sunlight
- Salt mist resistant and DC functionality
- AstroDim functionality for automatic turn on/off
- In building’s facades, cruises ships, luminous Signage,
- Public squares and architecture lighting
- Suitable for indoor and outdoor SELV installations
- Suitable for Class I luminaires
Products
| Product | Nominal wattage | Data sheet |

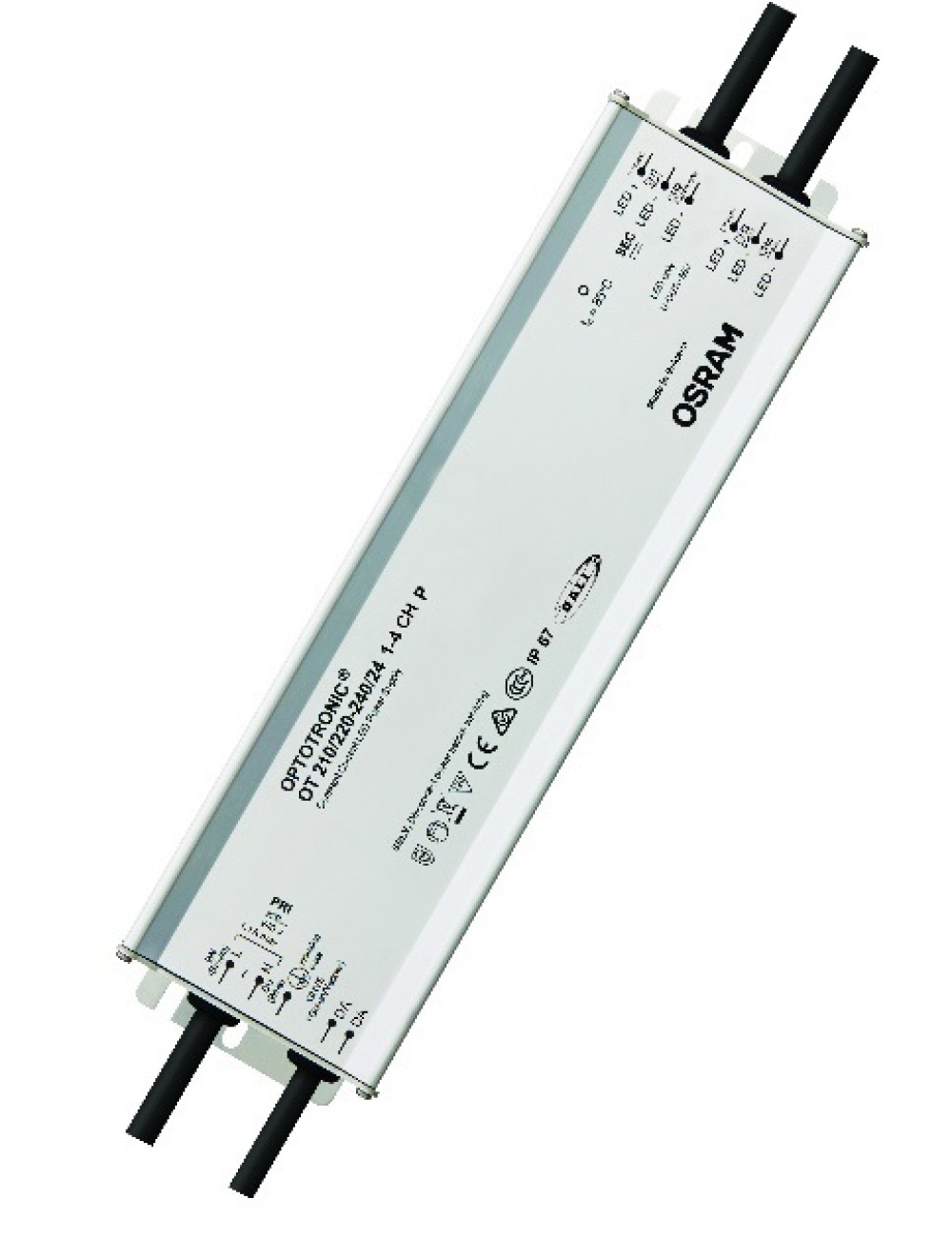

OTI DALI 210/220-240/24 1-4 CH IP67
|
210 W | |
OTI DALI 100/220-240/24 1-4 CH IP67
|
100 W |
