CV POWER SUPPLIES 24 V WITH 1…10 V
EAN: CV POWER SUPPLIES 24 V WITH 1…10 V
Product features
Family data sheet
View downloads
- DC mode functionality
- Type of protection: IP66
- Surge protection: up to 4 kV (L-N) / 6 kV (L/N-PE)
- Wide operating temperature range: -30…+55 °C
- Lifetime: up to 50,000 h (temperature at max. tc )
- immable via fully isolated 1…10 V interface
- Installation in very cold and hot environments
- Very stable output power
- High electronical reversible short-circuit, overload, overtemperature protection
- Smart Power Supply: boosting power to turn on cold LEDs
- Independent installation possible
- Dimming range: 1…100 %
- Facades, public squares, cruise ships
- Signage
- Suitable for indoor and outdoor installations
Products
| Product | Nominal wattage | Data sheet |
OT 40/220-240/24 DIM P IP66 1-10V
|
40 W | |

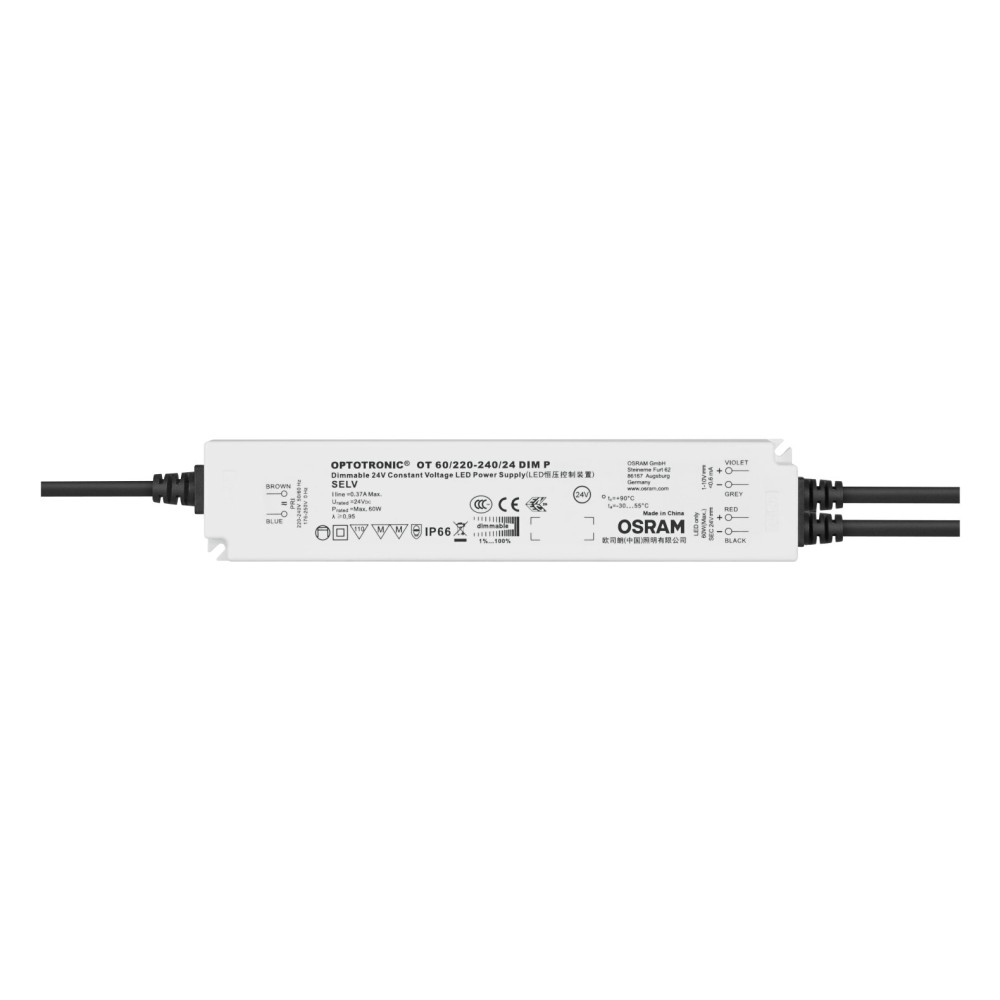

OT 60/220-240/24 DIM P IP66 1-10V
|
60 W | |

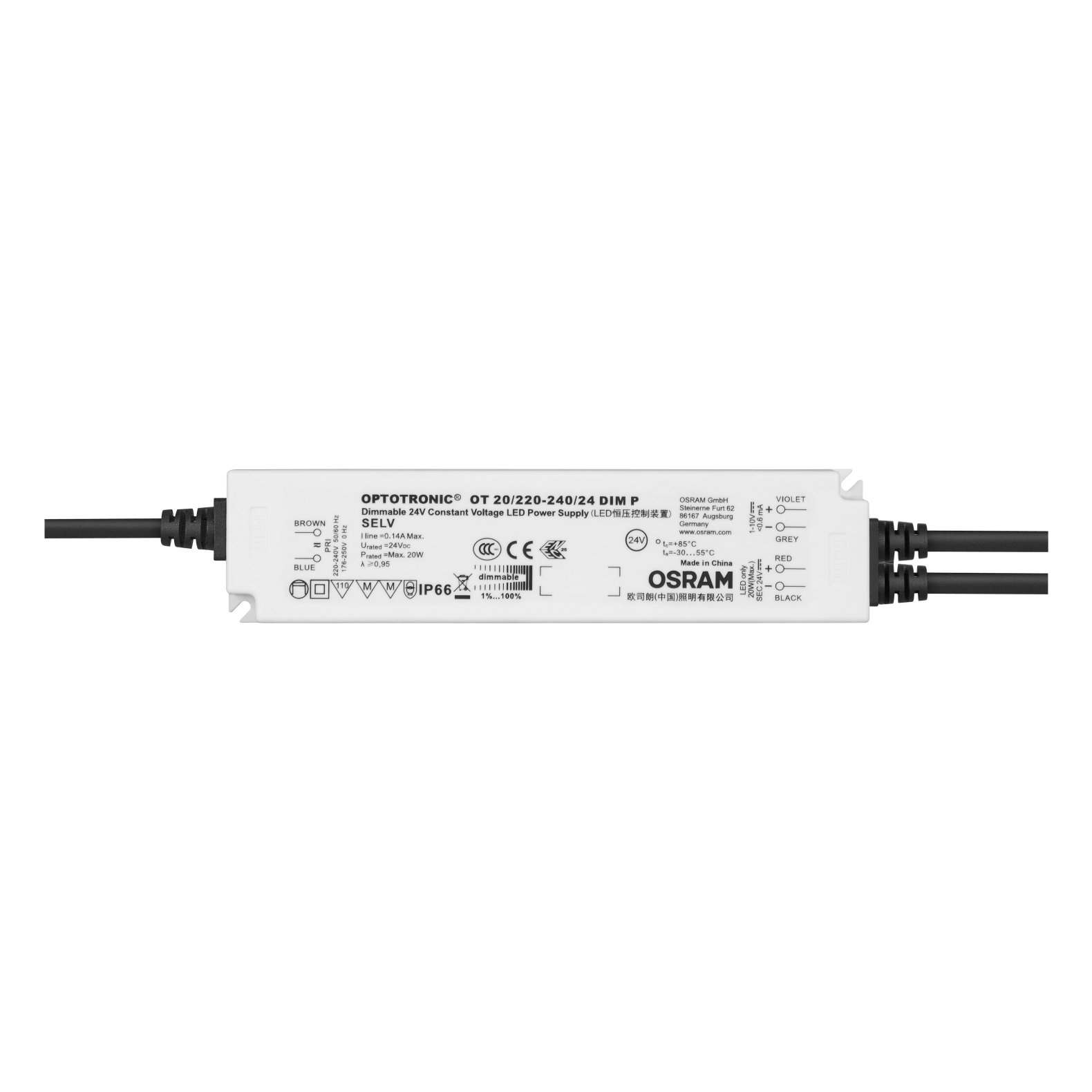

OT 20/220-240/24 DIM P IP66 1-10V
|
20 W | |
OT 250/220-240/24 DIM P IP66 1-10V
|
250 W | |

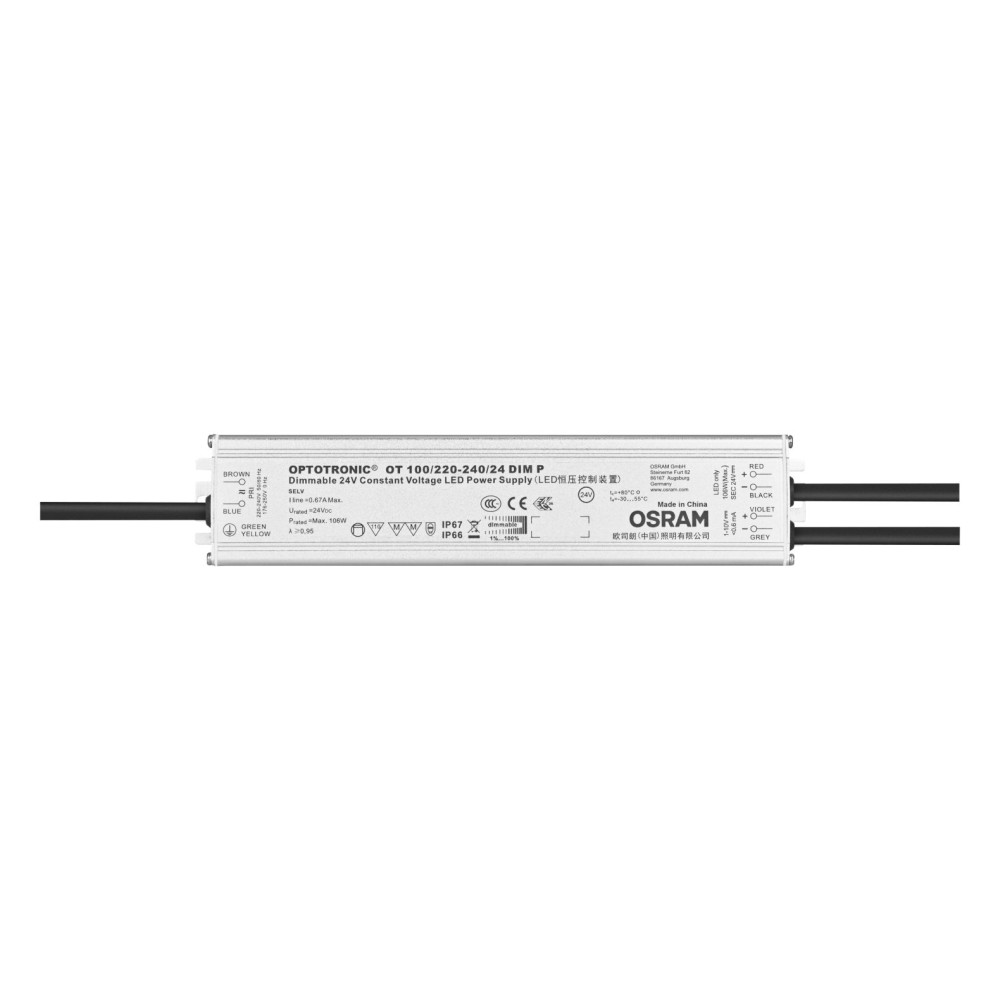

OT 100/220-240/24 DIM P IP66 1-10V
|
100 W | |

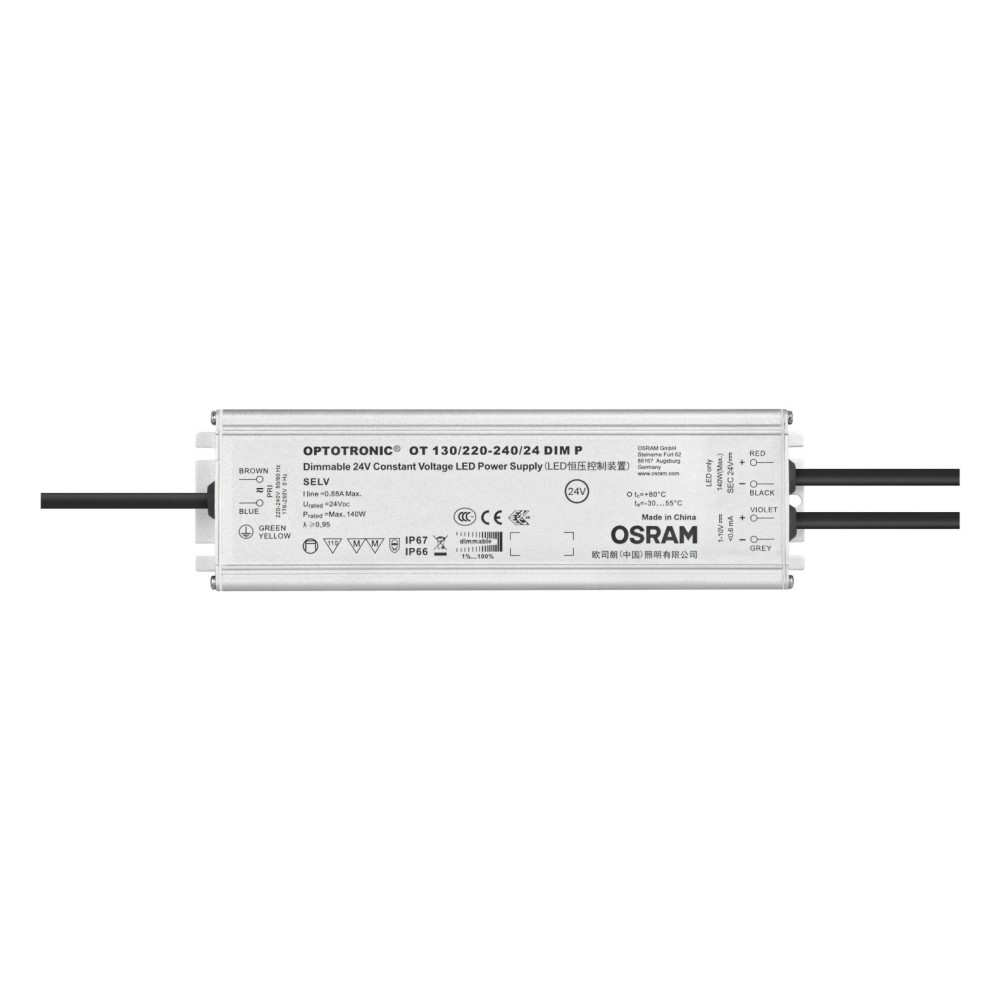

OT 130/220-240/24 DIM P IP66 1-10V
|
130 W |
